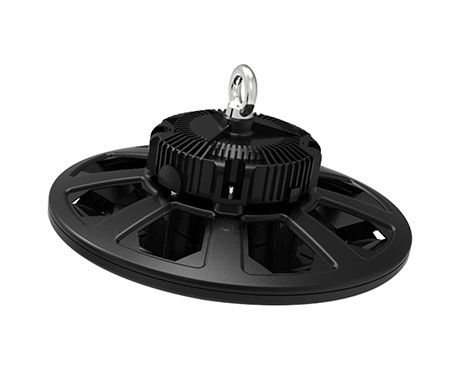

UFO High Bay LED Light

Value-Engineered, Factory Direct.

A Perfect Replacement for Mercury Vapour or HID Lamps

LED-High Bay is the perfect solution to lower your cost by improving the lighting efficiency through use of smart lighting technologies.

LEDs use less energy, emit less heat, and last longer than traditional high bay fixtures. Low power consumption, minimal maintenance cost, long life span and outstanding performance allow you to see the savings almost instantly.

No more warm up time for lights to turn on, enjoy instant on/off operation with no ballast humming noise.

With an IP rating of 65, the fixture is dust and water-resistant.

Excellent Thermal Management & Maintenance Free

Optimum Aluminium heat sink generates great airflow creating better heat dissipation.

The constant airflow avoids dirt accumulation and decreases heat making it the ultimate thermal management option.

Swapping your fixtures to LED not only saves your money, it is eco-friendly and it helps to ensure compliance with workplace safety.

Virtually maintenance free, organizations that have swapped have benefited from great savings(typically>65%) on their energy bill. A well-lit workspace means a greater level of safety and better output. The pure white lighting color provides more light and a brighter work environment.

With government offering incentives that reduce the monetary burden on your investment in LED lights significantly, now is the perfect time to upgrade your lights.

We are here to help

Want to know more about our products? We are here to help you. Just call or contact us to have a little chat.

We offer a wide range of the newest LED technology on the market designed to meet the needs of all business big and small. Our lights are tested to meet all safety standards and backed by up to 5 years’ warranty in the unlikely event of product failure.

The move to LED High bays is on. The energy savings and maintenance benefits are significant, especially if you choose the right alternative. This is the right alternative.

The right alternative

Reliability by design

A long maintenance free life is a vital value of LED, and heat management governs LED life. The superior temperature management, supported by the use of under driven, high specification components means the high bay light is perfect for even the toughest conditions.

Reliability guaranteed

The inherent reliability is ensured by rigorous production line inspection and testing, and thorough burn-in procedures. We’re so confident with the products, we’ll gladly provide a five years warranty.

Superior payback, long term asset

The expense of a quality LED solution can often be recovered in a little as six months depending on usage patterns and power prices. From that point forward, the savings go straight to the bottom line.

Characteristics:

Rated power: 100W/150W/200W

High performance LED chips

Efficacy up to 110--160lm/w (160lm/w optional)

Electrical: AC/100-305V, 50/60Hz. PF>0.9

LED Lifespan: >50,000 hours

Energy saving up to 90%

CCT: 2700-6500K(optional)

CRI: > Ra80

Beam angle: 60° 90° 120° optional

Superior uniformity

Superior temperature stability

Temperature tested at toughest conditions

Certified LED driver

No external reflectors required

PC Cover: safe for industrial applications

Operation temp.: -30℃～+50℃

Body: Aluminium alloy

Stainless steel screws

IP65 Protection rating

5 years warranty

Finish

Standard finish is high gloss black powder coat heat-radiative coating, anti-corrosion, anti-UV paint, Rated to 55℃ ambient.

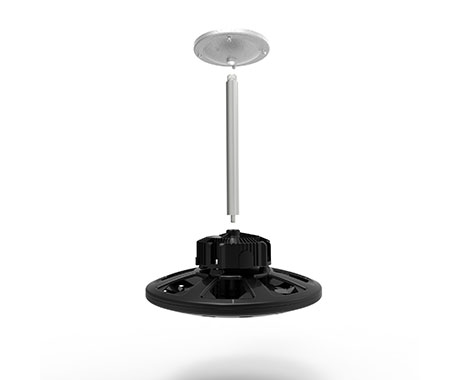

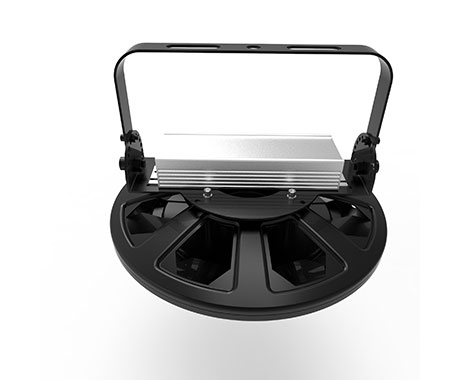

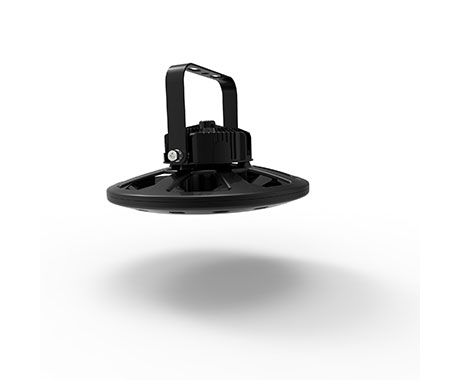

LED high bay light has been engineered to efficiently light any large interior space, such as warehouse and heavy industrial settings, gymnasiums, churches, swimming pools, natatoriums, shopping malls. It’s low profile and light weight design easily adapts to any environ with multiple mounting configurations. It provides specification grade optical performance using high efficacy LED and high power factor LED drivers.

Housing

Low copper, corrosion resistant, die cast aluminum construction.

All external hardware is 316 stainless steel.

One-piece silicone gasket ensure water-tight and dust-tight.

Optics/Lens

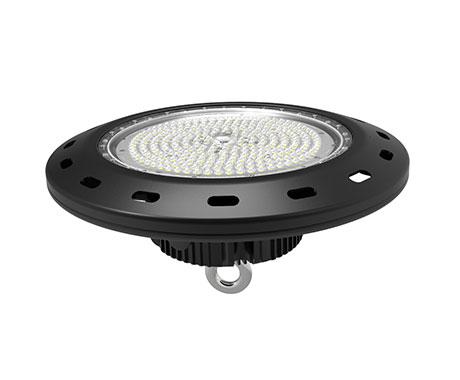

Optical chamber contains high transmittance clear tempered glass lens sealed (IP65) with silicone gasket.

Ultra high efficiency optics provide narrow, medium and wide distribution types.

Optically clear plastic lens available as factory installed option for food service or food processing applications or as specified.

Electrical

High power LED source, with performance of up to 110lm per watt.

Available in range of color temperature 2700-6500K.

LED Driver

Available dimming options include: PWM, 0-10V and resistance dimming as well as DALI control or microwave sensor.

Applications:

Warehouse lighting, manufacturing facilities, industrial workshops, golf courses, convention centers, sporting arenas, big-box retail stores, cold storage facilities, gymnasiums. Factory Lighting. Showroom Lighting Grocery Store Lighting Area & Storage Lighting. Gymnasium Lighting
