Structure, Materials & Features

Heavy-gauge, die-cast aluminum housing with cooling fins.

Heat and impact resistant tempered glass lens with anti-glare diffuser.

Continuous silicone gasket surrounds lens for IP65 weather – tight seal.

Instant-On flicker-free Cold Start and Hot Re-Start.

Bright white light (5000˚K) for greater visibility and safety.

LED engine design with Advanced Thermal Management.

High power factor, low THD driver with 10kV Surge Protection.

High Output LED’s.

Up to 15 year maintenance free operation.

5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)

Optional: Bi-Level Dimming, 0-10V Dimming, Wi-Fi Control, Remote Monitoring and ON/ OFF Control

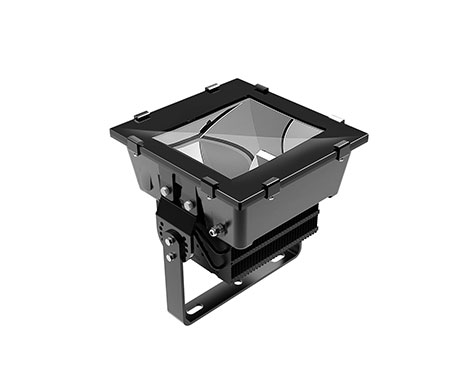

500W H-Series High Mast floodlight delivers 47,500 lumen.

the output is equivalent to 1,000W HID Floodlight.

Ideal fixture for sports fields, stadium, container dock, storage yard, etc

The housing, electrical compartment and fitter are made from tensile aluminum. Patented heatsink design adopts pure copper and cooling fins for excellent thermal management and maximize luminaire durability

Exterior of the luminaire is processed with electrophoretic paint and have passed salt water spray test which shows excellent corrosion resistance

Built-in surge protection up to 4kV

Operating temperature -30°C ~ +55°C

IP65, suitable for outdoor / wet application

- 4mm tempered glass panel sealed in with compressed fiber gasket to block away any moisture or dust.

- 20 degree increment, 11 lockable positions, overall 200 degree adjustability.

- IP65 Rated suitable for outdoor / wet application.

Applications

Sports Field Lighting

High-Mast Lighting

Sports Arena Lighting

Spot Lighting

Area & Storage Lighting

Logistic Center, Container Yard, Stadium, Golf Course Exhibition Hall
